Good Thermal Stability Sliding Pipe Support , Cryogenic Pipe Supports，DN50 ( 2 inch) *100

Name: Good Thermal Stability Sliding Pipe Support Cryogenic Pipe SupportsDN50 2 inch 100
Brand: Kaff Rees
Price: 1 USD

Buy cheap Good Thermal Stability Sliding Pipe Support , Cryogenic Pipe Supports，DN50 ( 2 inch) *100 product

Place of Origin : Changzhou, Jiangsu,China

Brand Name : Kaff Rees

MOQ : 20 Cubic Meters

Price : Negotiable

Packaging Details : Carton packaging/Wooden case packaging/according to the requirements

Payment Terms : EXW/FOB/CIF

Certification : SGS

Delivery Time : Negotiable

Supply Ability : According to products

Name : Cryogenic Pipe Supports

Feature : Good Thermal Stability

Cold insulation material : HDPIR

Insulation thicknesses : 25mm - 250mm

Pipe OD : 21.3 mm - 965.20 mm

Application : Petrochemical plant

Contact Now

Sliding Pipe Support is a support that moves along the pipe in an axial direction. It is able to move between planes and it acts as a supporting force. This kind of pipe support can not only make the product be fixed firmly and the on-site construction and processing conveniently, but also make the product move laterally by adjusting angle. So the application of sliding pipe support has obvious advantages.

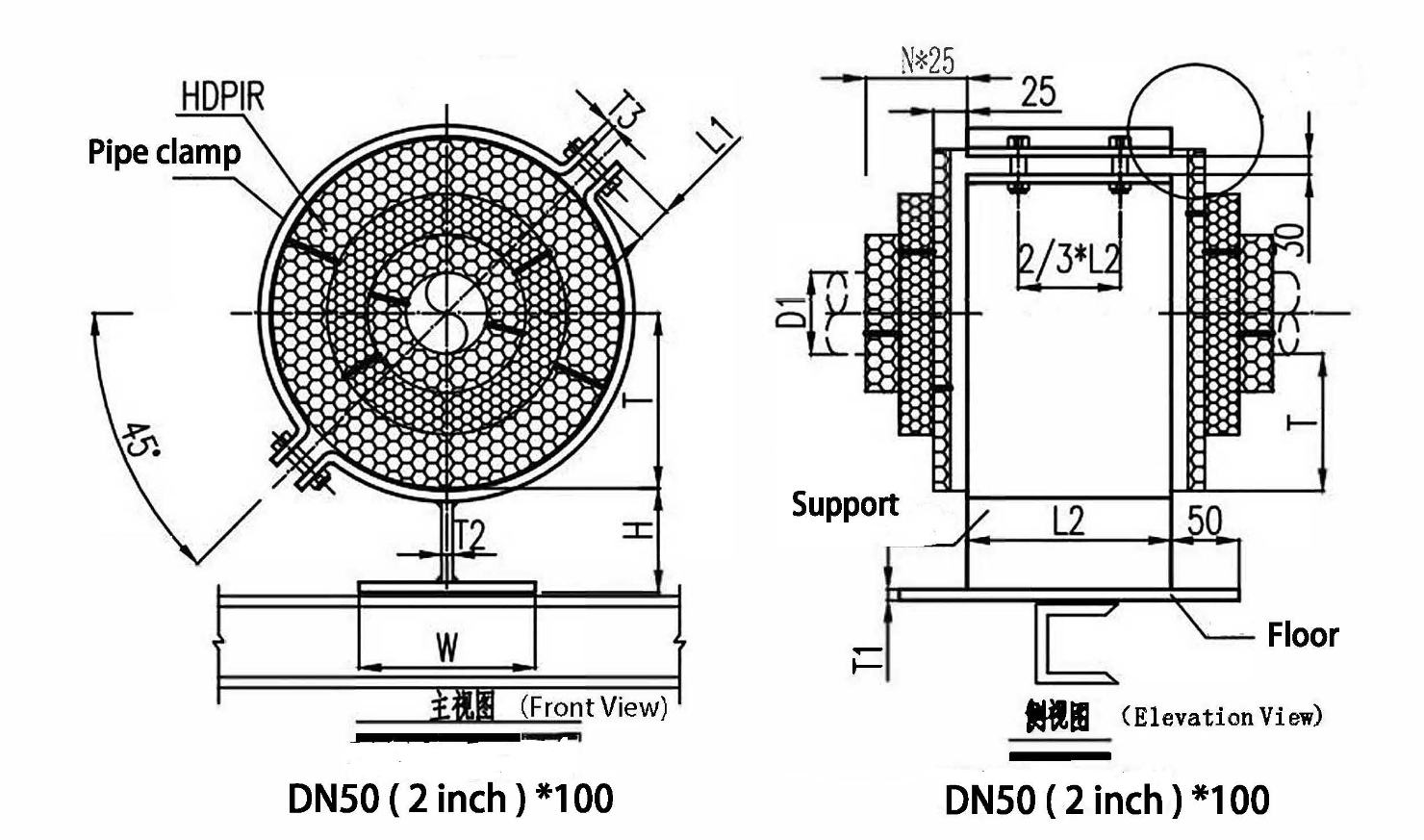

The technical parameters of Sliding Pipe Support DN50 ( 2 inch) *100 are as follow:

Pipe Diameter	Cooling Thickness	Bottom Floor Width W	Iron Piece Length L	Ear Plate Width E	Pipe Bottom Elevation H
57mm	100mm	120mm	150mm	40mm	50mm

Good Thermal Stability Sliding Pipe Support , Cryogenic Pipe Supports，DN50 ( 2 inch) *100

These products are normally used in industrial processes for the production, transport and distribution of liquefied gases. These can be applied for propane and butane (LPG), methane (LNG), ethylene, nitrogen, or ammonia.
